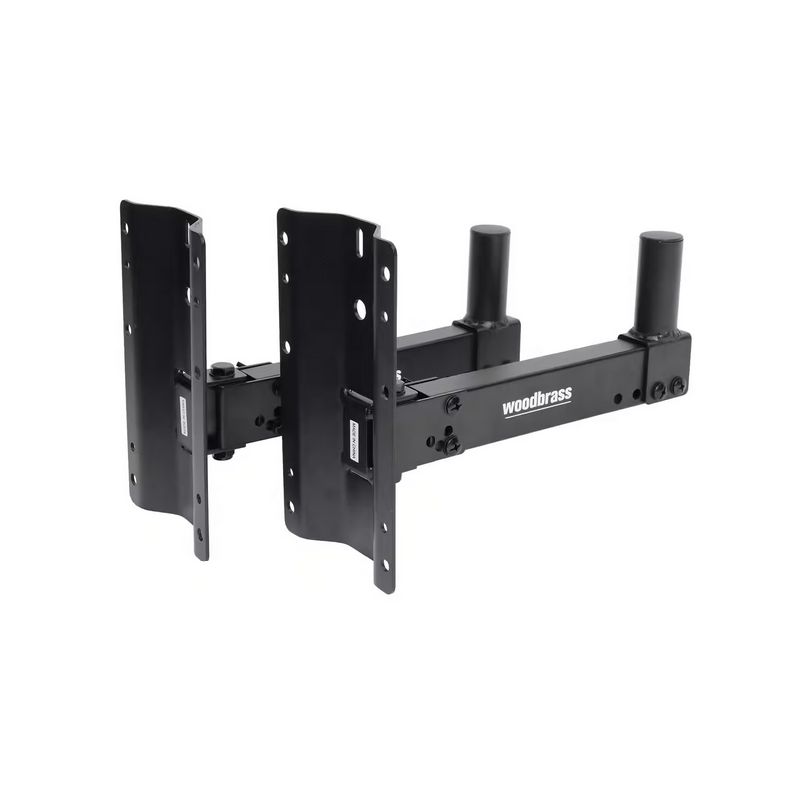

WOODBRASS SPS930

Essential Information About the Wall Speaker Mounts "Adjustable Wall Mount with Tilt and Length" (pair)

• Full Adjustability: arms adjustable to 27.5 / 29.5 / 31.5 cm, horizontal or downward tilt, and lateral orientation up to 90 degrees for precise aiming of the listening area.
• 35 mm Standard: immediate compatibility with most PA and monitoring speakers equipped with a 35 mm insert.
• Professional Robustness: steel construction, satin black epoxy finish, supporting up to 20 kg per mount for durable holding.
• Clean Installation: large plate with dedicated cable pass-through, screws and wing nuts included. Sold in pairs.

A Reliable Classic for Fixed Installations

When every square meter counts, these mounts free up floor space and optimize your speaker arrangement. Their discreet design blends into a control room, home studio, music bar, or multipurpose room, while offering the precise adjustment expected in professional contexts. The satin black epoxy finish minimizes reflections and withstands intensive use.

Who and What For?

Designed for sound providers, studios, places of worship, and public venues, these wall arms are also suitable for demanding home installations. The pair facilitates pairing your main speakers, improves coverage, and secures equipment at height, whether for a compact front array, side fills, or nearfield monitoring.

Precise Adjustments and Clean Installation

Multi-Axis Adjustments

The combination of length/tilt/orientation allows aligning speakers, adjusting directivity, and achieving even coverage of the audience or sweet spot without cluttering the stage or mixing desk.

Integrated Cable Management

The rear clearance and dedicated holes promote neat routing, reduce stress on connectors, and enhance the installation's aesthetics, both in studio and venue settings.

Robust and Discreet

The steel construction ensures rigidity and stability, while the satin black epoxy paint guarantees a sober appearance and excellent durability, even under intensive use.

Technical Specifications

Compatibility and Adjustments

• Speaker tube diameter: 35 mm
• Adjustable tilt: horizontal position and two downward tilt positions
• Lateral orientation up to 90 degrees each side
• 3 adjustable lengths: 27.5 - 29.5 - 31.5 cm (distance from speaker tube center to wall)

Dimensions

• Arm section: 5 x 3 cm
• Wall base dimensions: 24.95 x 13.85 cm, thickness 3 mm
• Cable pass-through clearance: depth 2.3 cm with 1 round hole of 1.4 cm diameter and 1 oblong hole of 1.9 x 0.75 cm

Load and Weight

• Maximum load per mount: 20 kg
• Weight per mount: 1.977 kg

Fixings and Accessories

• Supplied with screws, washers, and wing nuts

Materials and Finish

• Made of steel
• Satin black epoxy paint finish
