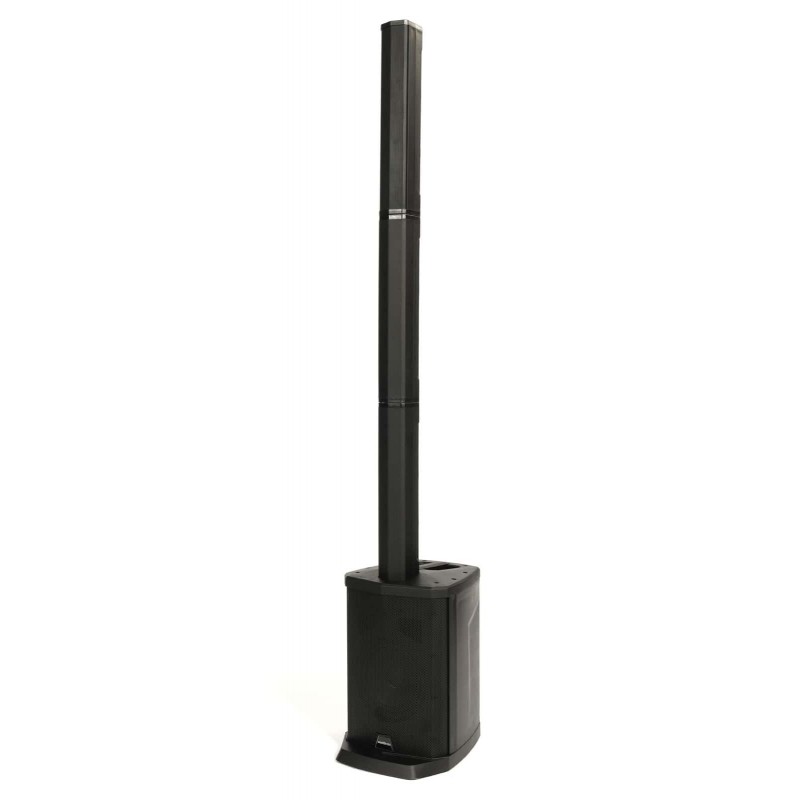

WOODBRASS SWB CS200

Essential Information About the Woodbrass CS200 Column System

• Wide 120-degree dispersion for even coverage with a single column.


• Built-in mixer with mic/line inputs, echo, and "Speech / Music" tone control.


• Versatile connectivity: wireless, USB, SD, and XLR output to integrate into any setup.


• TWS "True Wireless Stereo" mode to pair two CS200 units and expand the soundstage.

A Modern Column Inspired by Compact Systems

Designed in the spirit of portable sound systems, the Woodbrass CS200 combines an active subwoofer and a modular column of small speakers to offer range, intelligibility, and reduced footprint. Its injected polypropylene construction ensures durability and lightness, ideal for frequent road use.

Who Is It For and What Are Its Uses?

The CS200 is aimed at hosts, DJs, singers, acoustic musicians, and speakers who need a ready-to-use system for weddings, cocktails, conferences, classes, rehearsals, or small stages. Its quick setup and generous directivity guarantee clear sound from the front row to the back of the room, both indoors and outdoors.

Key Features to Serve Your Events

Wide and Intelligible Dispersion

The satellite column aligns several drivers to project precise and coherent sound. The 120-degree dispersion angle broadly covers your audience while limiting dead zones, practical when installation space is limited.

Built-in Mixer and DSP

The mixer housed in the bass cabinet includes two mic/line inputs with independent volume controls and echo effect, plus a stereo mini-jack auxiliary input. The "Speech / Music" tone control allows instant adaptation of the sound to a speech or a musical set.

Media Player and Wireless

Stream your playlists from a smartphone, tablet, or computer via wireless connectivity, or play your content via USB and SD with the integrated MP3 player. Adding a second CS200, the TWS pairing creates an immersive stereo image without extra cables.

Modular Assembly and Easy Transport

The interlocking spacer modules speed up assembly and allow adjustment of the column height. Compact and lightweight, the CS200 goes from the trunk to the stage in minutes.

Technical Specifications

System

• Power: 100 W RMS, 200 W Peak


• Amplification Class: D


• Dispersion Angle: up to 120 degrees


• Tweeters: 2.5" / 6 cm (x4)


• Woofer: 8" / 20 cm


• Construction: injected HD polypropylene


• Compatible Media: wireless, USB, SD


• Built-in MP3 player (USB, SD)


• Audio Protection: analog limiter


• Possible to pair 2 systems in TWS

DSP and Mixer

• Integrated mixer


• EQ: progressive "Speech / Music" tone control


• Effects: echo


• Frequency Response: 20 Hz / 19 kHz


• Max SPL: 105 dB

Connectivity

• Inputs: 2 XLR mic, 2 6.35mm Jack line, 1 3.5 mm mini-jack auxiliary


• Outputs: 1 XLR line

Power Supply

• AC Input Voltage: 100 V / 240 V


• Power Connector: IEC C14

Satellite Column

• Dimensions per module: W 8.5 cm x H 47 cm x D 9.8 cm


• Weight: speaker module 1.98 kg / spacer module 0.98 kg

Dimensions and Weight (assembled)

• Dimensions: W 32 cm x H 187 cm x D 40 cm


• Total Weight: 14 kg

Option

• Carrying bag (ref. 389658)
