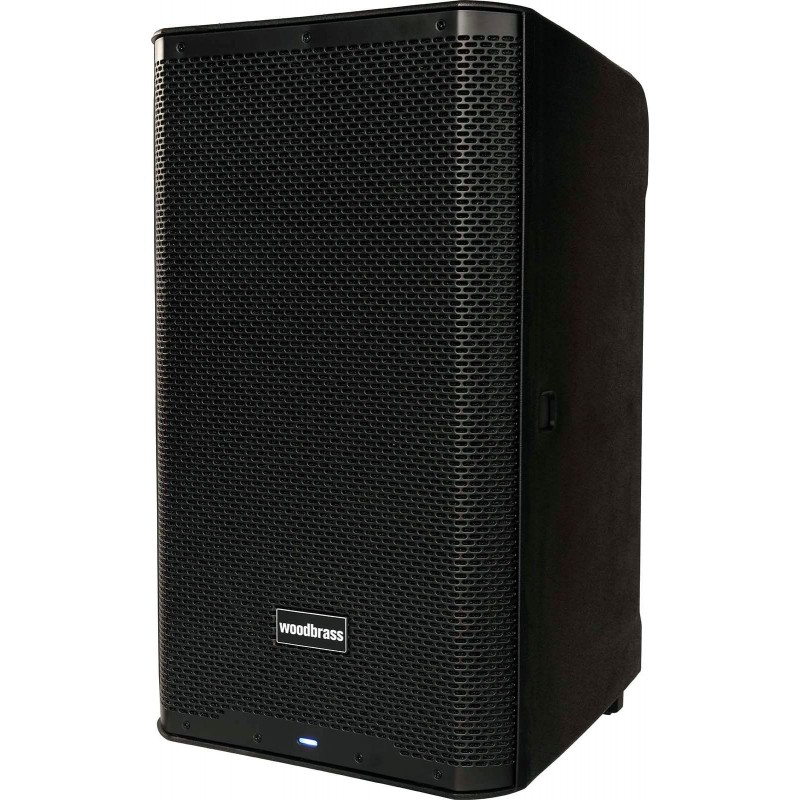

WOODBRASS DXPRO12

Essential Information About the Woodbrass DXPRO12 Active Speaker

• Controlled Power: Class-D amplification 450 W RMS (1000 W peak) for dynamic headroom suitable for mobile events as well as installations.


• Adjustable Sound: Built-in DSP with 4 modes (Normal, Live, DJ, Speech), EQ, and delay to precisely shape your output.


• Wireless and Stereo: Integrated receiver and TWS mode to pair two DXPRO12 speakers in stereo up to 10 meters.


• Flexible Installation: Dual 35 mm sockets (straight and 5% angled), 45-degree cut pan for monitor use, robust chassis, and metal grille.

A 12-Inch Speaker Designed for Versatility

In a 12-inch format, the DXPRO12 strikes the ideal balance between compactness, bass impact, and clarity in the mid-high range. It meets the needs of DJs, bands, hosts, and service providers looking for a reliable, easy-to-deploy, and high-performance active speaker from cocktail parties to dancefloors.

Who Is It For and What Are Its Uses?

Designed for sound reinforcement at various events, the DXPRO12 excels as a front-of-house speaker for small to medium venues, stage monitor, conference, or fitness classes. Wireless stereo pairing facilitates quick setups, while subwoofer compatibility allows for enhanced bass support for DJ nights and more demanding performances.

Key Features for Controlled Sound

The onboard DSP provides fine adjustment of levels, treble, midrange, bass, and delay. The four presets Normal, Live, DJ, and Speech speed up setup, and two position presets (Normal/Monitor) optimize response depending on front-of-house or monitor use. The configurable front LED (ON/OFF/LIMIT) assists with level monitoring in use.

Regarding connectivity, the DXPRO12 offers two balanced Combo Jack/XLR inputs with MIC/LINE selector and independent level controls, a 3.5 mm AUX mini-jack input for portable sources, and a balanced XLR LINE-level output for daisy chaining. The wireless receiver and True Wireless Stereo mode simplify streaming from a mobile device and pairing two speakers cable-free.

The implementation is equally well thought out: two 35 mm sockets (straight and 5% angled) facilitate orientation, the 45-degree cut pan angle allows wedge positioning, and the front protected by a metal grille ensures durability over time.

Technical Specifications

Amplification

• Technology: Class-D


• RMS Power: 450 W (300 W bass + 150 W treble)


• Peak Power: 1000 W

Inputs / Outputs and Control

• Display: Backlit LCD


• 2 balanced Combo Jack/XLR inputs with MIC/LINE selector and individual level adjustment


• 1 AUX 3.5 mm mini-jack input


• Balanced XLR LINE-level output


• Receiver: Wireless


• Stereo pairing: TWS mode (up to 10 meters)

Transducers

• Loudspeaker: 12 inches (30.48 cm) with 3-inch (7.62 cm) voice coil, 4-ohm impedance


• Compression driver: 1 inch (2.54 cm), 6-ohm impedance

DSP and Modes

• Adjustments: Level, Treble, Mid, Bass, Delay


• 4 audio modes: Normal, Speech, Live, DJ


• 2 position presets: Normal, Monitor


• High-pass filter HPF SUB: ON/OFF


• Front LED: ON/OFF/LIMIT

Sound Dispersion and Installation

• Directivity: horizontal 90deg x vertical 60deg


• 2 speaker stand sockets: straight and 5% angled


• Cut pan: 45deg for stage monitor use

Performance

• Frequency response: 40 Hz - 19 kHz


• Maximum sound pressure level (SPL): 118 dB

Power Supply

• 230 V AC / 50 Hz

Dimensions and Weight

• Dimensions (W x H x D): 345 x 610 x 360 mm


• Weight: 18 k

Box Contents

• DXPRO12 speaker


• 2 m power cable (suitable for speaker stand height)


• User manual

Optional Accessories

• Dedicated carrying bag (optional)
