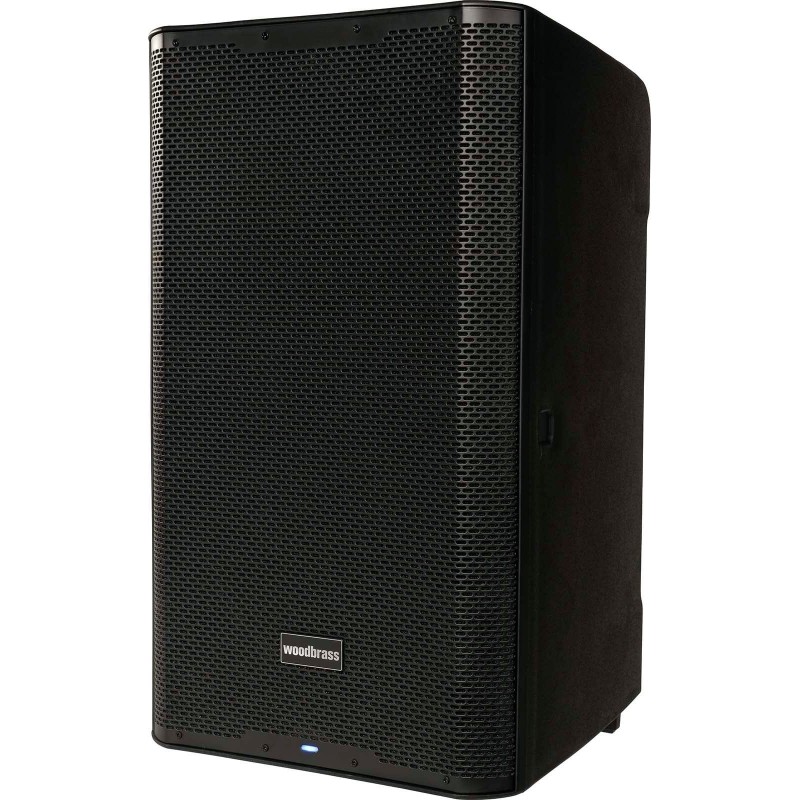

WOODBRASS DXPRO15

Essential Information About the Woodbrass DXPRO15 Active Speaker

• Controlled Power: Class-D amplification 450 W RMS (1000 W peak) for sound levels up to 125 dB, efficient and reliable.


• Custom Sound: DSP with LCD screen, 4 modes ("Normal", "Speech", "Live", "DJ") and settings for "Level", "Treble", "Mid", "Bass", "Delay".


• Complete Connectivity: 2 balanced Combo XLR/6.35mm Jack inputs with MIC/LINE selector, 3.5 mm AUX mini-jack input, LINE level XLR output.


• Road-Ready: robust enclosure, metal grille, dual 35 mm sockets (straight and 5% tilt) and 45deg cut corner for monitor use.

A Versatile Reference in Mobile Sound Reinforcement

Designed to support both touring performances and fixed installations, the DXPRO15 stands out for its excellent power/control ratio. Its integrated Class-D amplification module and digital processing ensure a clear and musical output, regardless of the context.

Who Is It For and What Are Its Uses?

Ideal for DJs, bands, multipurpose rooms, associations, and businesses, the DXPRO15 adapts to dance parties, small to medium-sized concerts, fitness classes, conferences, and speeches. Its quick setup and presets allow for professional results without a dedicated technician.

Features That Make the Difference

Intuitive DSP with LCD Screen

Instantly access essential parameters from the backlit screen: adjust equalization, level, and delay, activate modes suited to your stage, and switch between "Normal" and "Monitor" position presets. The front LED is configurable ("ON", "OFF", or "LIMIT") for discreet or informative visual feedback as needed.

Wireless Connection and "TWS" Stereo

The built-in receiver allows wireless streaming from a compatible device. Stereo pairing and "True Wireless Stereo" mode provide an immersive left/right image between two DXPRO15 units up to approximately 10 meters.

Optimized Placement and Bass Extension

Use the 45deg cut corner for precise stage monitoring or mount the speaker on a stand using the two 35 mm sockets (straight and 5% tilt) to target the audience. The "HPF SUB" high-pass filter facilitates integration with a subwoofer to delegate bass frequencies and increase impact.

Technical Specifications

Amplification and Power

• Amplification: Class-D


• RMS Power: 450 W


• Peak Power: 1000 W


• Max SPL: 125 dB


• Frequency Response: 30 Hz - 19 kHz

Transducers

• 15" (38.1 cm) woofer with 3" (7.62 cm) voice coil


• 1" (2.54 cm) compression driver with 1.35" (3.43 cm) voice coil


• Coverage: 90deg horizontal x 60deg vertical

Processing and Controls

• DSP Processor: Level, Treble, Mid, Bass, Delay


• Audio Modes: "Normal", "Speech", "Live", "DJ"


• Position Presets: "Normal", "Monitor"


• High-Pass Filter HPF SUB: ON/OFF


• Front LED: ON/OFF/LIMIT


• Display: Backlit LCD screen

Connectivity

• 2 balanced Combo XLR/6.35mm Jack inputs with MIC/LINE selector and individual level control


• 1 AUX 3.5 mm mini-jack input


• 1 balanced XLR LINE level output


• Receiver: wireless, stereo pairing and TWS

Ergonomics and Placement

• 45deg cut corner for monitor use


• 2 x 35 mm sockets: straight and 5% tilt

Power Supply

• Power Supply: 230 V AC / 50 Hz

Dimensions and Weight

• Dimensions (W x H x D): 370 x 695 x 415 mm


• Weight: 20 kg

Box Contents

• DXPRO15 Speaker


• 2 m power cable


• User manual
