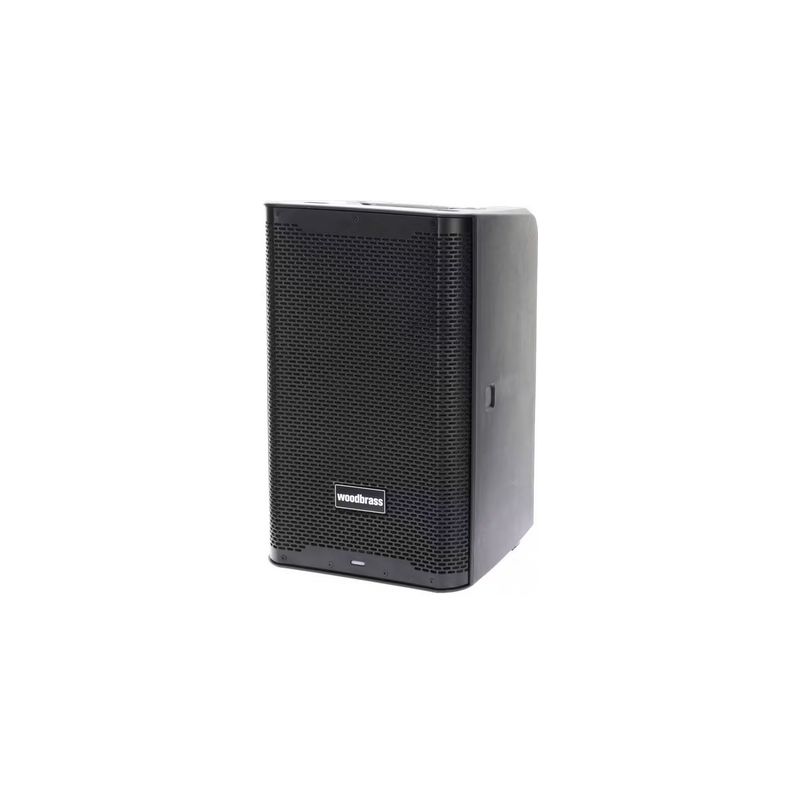

WOODBRASS DXPRO8

The Essentials to Know About the Woodbrass DXPRO8 Active Speaker

• Total Versatility: concerts, DJing, hosting, conferences, or fixed installations, it adapts to every context without compromise.
• DSP-Calibrated Sound: LCD screen and fine adjustments to sculpt treble, mids, bass, level, and delay.
• Controlled Power: Class-D amplification, 280 W RMS / 600 W peak for clean and dynamic output.
• Ready for Stereo: wireless TWS pairing of two DXPRO8 units for an immersive soundstage.

The Ideal Companion for Mobile Performances and Installations

With its 8-inch format, the DXPRO8 condenses the essentials of a modern PA speaker: efficient Class-D amplification, durable loudspeaker, and integrated DSP. Its robust metal grille design makes it a reliable choice for back-to-back gigs as well as installation use.

Who Is It For and What Are Its Uses?

Hosts, DJs, musicians, speakers, sports coaches, and event managers will find in the DXPRO8 a lightweight and effective solution. On a stand in front, as a stage monitor thanks to the 45-degree angled cut, solo or paired in TWS, it covers both speech and music equally well.

Features and Innovations Serving the Sound

DSP and Multifunction Screen

The backlit LCD screen provides access to essential settings: "Level," "Treble," "Mid," "Bass," and "Delay." Four audio modes-"Normal," "Live," "DJ," and "Speech"-instantly optimize the output. Position presets "Normal" and "Monitor" refine the listening experience based on placement, while the HPF SUB low-cut filter (ON/80/100/120) facilitates integration with a subwoofer. The front LED (ON/OFF/LIMIT) indicates system status.

Wireless Playback and TWS Stereo

The built-in receiver allows cable-free playback from a compatible device. In TWS mode, two DXPRO8 units connect wirelessly up to 10 meters apart for true stereo listening from a single source.

Installation and Orientation

The dual 35 mm socket (straight or 5% tilt) simplifies coverage adjustment, and the 90deg x 60deg directivity ensures even dispersion. As a monitor, the 45-degree angled cut precisely directs the beam toward the performer. Thanks to the balanced XLR LINE-level output, daisy-chaining to another speaker or a system with a subwoofer is immediate.

Technical Specifications

Audio

• Amplification: Class-D
• Wireless connectivity
• Stereo pairing: TWS

Display

• Screen: Backlit LCD

Connections

• Inputs: 2 balanced Combo Jack/XLR inputs with MIC/LINE selector and individual level control
• Inputs: 1 AUX 3.5 mm mini-jack input
• Outputs: Balanced XLR LINE-level output

Loudspeakers

• 8" (20 cm) loudspeaker
• 1" (2.54 cm) compression driver

DSP Processor

• Adjustments: Level, Treble, Mid, Bass, Delay
• 4 audio modes: Normal, Speech, Live, DJ
• Position presets: Normal, Monitor
• HPF SUB low-cut filter: ON/80/100/120
• Front LED: ON/OFF/LIMIT

Performance

• RMS Power: 280W
• Peak Power: 600W
• Frequency Response: 60 Hz-19 kHz
• Max SPL: 116 dB
• Dispersion: horizontal 90deg x vertical 60deg

Usage

• Dual 35 mm speaker stand socket (straight and 5% tilt positions)
• 45-degree angled cut for stage monitor positioning

Power Supply

• Power supply: 230V AC / 50Hz

Dimensions & Weight

• Dimensions (W x H x D): 280 x 450 x 270 mm
• Weight: 10.36 kg

Box Contents

• DXPRO8 speaker
• 2M power cable (suitable for speaker stand height)
• User manual
