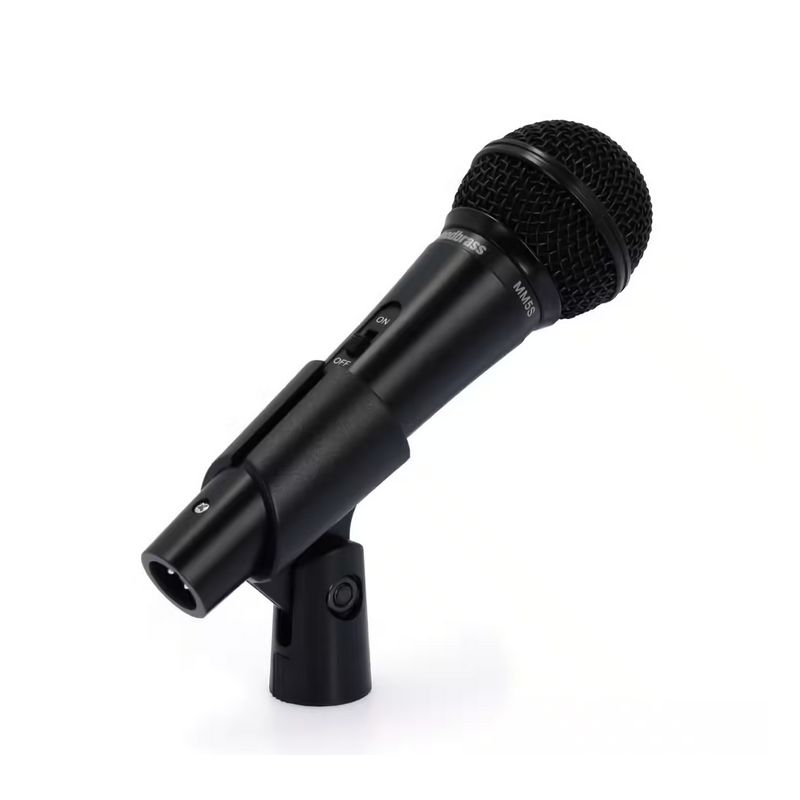

WOODBRASS MM5S

Essential Information About the MM5S Dynamic Vocal Microphone

• Voice Highlighted: cardioid dynamic capsule for a defined timbre and excellent stage noise rejection.
• Powerful and Reliable: handles high levels while remaining clear, ideal for demanding performances.
• Versatile: lead vocals, backing vocals, as well as snare drum, percussion, acoustic instruments, and guitar amps.
• Practical: balanced XLR output and built-in ON/OFF switch for full control.

A Microphone Designed for the Modern Stage

Born for live performance, the MM5S focuses on the essentials: putting the voice front and center and withstanding touring conditions. Its cardioid pattern helps reduce feedback and isolate the source, ensuring a clean mix both on stage and during rehearsals.

Who Is It For and What Are Its Uses?

The MM5S is aimed at singers, hosts, choristers, teachers, and multipurpose venues seeking a rugged, easy-to-use microphone that delivers consistent performance from gig to gig. Its balanced response and suitable output level make it a reliable partner for portable PA systems as well as more ambitious setups.

Key Features for Professional Sound

Clarity and Feedback Control

The cardioid pattern focuses capture on the voice and limits unwanted sounds from monitors and the audience, enhancing intelligibility.

Immediate Control

The built-in ON/OFF switch allows muting the capsule with a single gesture, convenient during stage changes or when no sound engineer is present.

All-Metal Construction

Metal body and grille ensure remarkable durability and excellent resistance to shocks and repeated handling.

Technical Specifications

Transducer and Polar Pattern

• Capsule Type: dynamic
• Polar Pattern: cardioid

Response and Level

• Frequency Response: 50 Hz - 15 kHz
• Sensitivity: -71 dB (0 dB = 1 V/Pa @ 1 kHz)
• Impedance: 600 ohms +/- 30% (@ 1 kHz)

Connectivity and Controls

• Balanced 3-pin XLR output connector
• Built-in ON/OFF switch allowing muting even without a sound technician at the controls

Construction

• Robust build
• Metal body and grille

Weight

• 205 g

Included Accessories

• Microphone clip
• Thread adapter

Package Contents

• 1 MM5S microphone
• 1 unbreakable nylon clip
• 1 brass thread adapter Jack 6.35mm - 3/8 inch compatible with any microphone stand
• 1 ABS carrying case with foam interior
