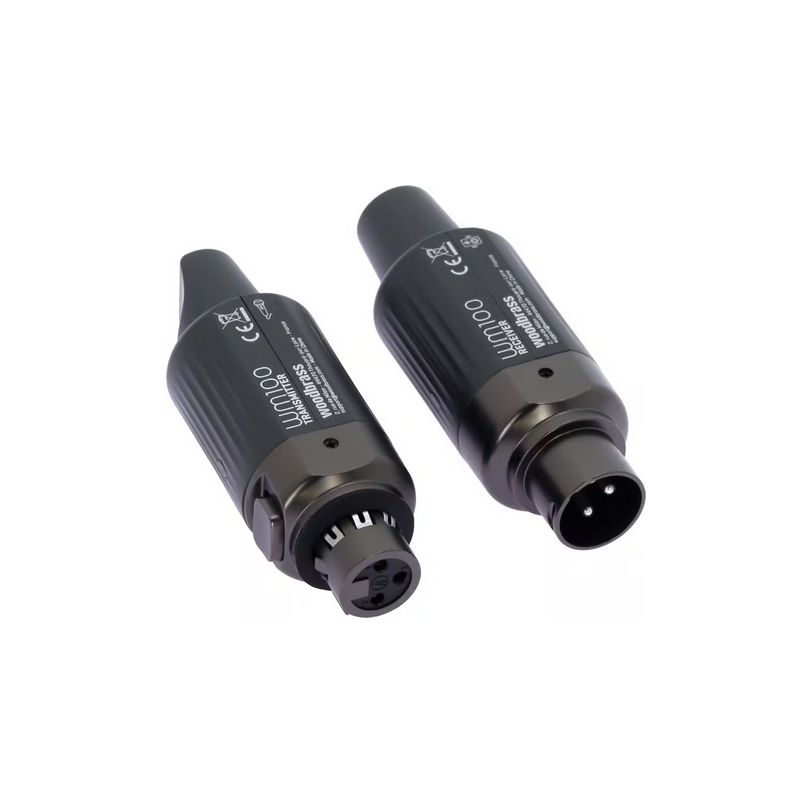

WOODBRASS WM100

Essential Information About the Wireless System for Dynamic Microphones "Compact UHF Transmitter-Receiver System"

• Instantly converts any dynamic XLR microphone into a wireless microphone, plug-and-play installation
• Wideband audio quality 20 Hz - 20 kHz with dynamic range greater than 106 dB
• Up to 5 h 30 battery life, full recharge in 2 h with 3-level indicator
• 7 UHF channels 863.1-864.9 MHz (color-coded), range up to 30 m, ideal for multi-system setups

Designed for the Free UHF Band in Europe

Optimized for the 863-865 MHz range, this kit uses a portion of the spectrum widely adopted for wireless audio. You benefit from an excellent balance between range, radio stability, and ease of setup, while preserving your habits thanks to standard XLR connectors on both the transmitter and receiver.

Tailored for Singers, Speakers, and Mobile Technicians

On stage, in training, sports events, or mobile performances, this system turns your favorite dynamic microphone into a reliable UHF solution. It easily integrates with a mixing console, stage box, or DJ system and speeds up stage changes when every second counts.

Practicality, Stability, and Refined Audio for Your Performances

Immediate Start-Up

Plug the transmitter directly into the microphone's XLR socket and the receiver into the mixing console's XLR input: no complex configuration, you're ready in seconds.

Color-Coded Channels, Controlled Range

The 7 UHF channels simplify assignment in multi-system setups and reduce frequency conflicts. The range up to 30 m covers most stages, meeting rooms, and event venues with a stable and clean connection.

Smart Battery Life and Charging

The built-in lithium batteries provide up to 5 h 30 of use, recharge in 2 h via USB-C/USB-A, and feature a 3-level indicator. Automatic shutdown after 30 minutes without signal preserves battery life between sets.

Faithful Microphone Reproduction

With a 20 Hz - 20 kHz response and >106 dB dynamic range, the microphone's timbre and vocal nuances are preserved for a natural sound without perceptible distortion under intended usage conditions.

Technical Specifications

System and Transmission

• Wireless system for dynamic microphones
• UHF band: 863.1 to 864.9 MHz
• 7 selectable channels, color-coded per channel
• High-quality audio link, free from interference and distortion
• Range: up to 30 m
• Simultaneously usable systems: 7

Audio

• Frequency response: 20 Hz - 20 kHz
• Dynamic range: >106 dB

Power Supply and Battery Life

• 3.7 V 800 mAh lithium batteries (built-in)
• Battery life: 5 h 30
• Charging time: 2 h
• 3-level charge indicator: >30%, <30%, <5%
• Automatic shutdown after 30 minutes of inactivity

Connectivity and Integration

• Transmitter plugs into the microphone's XLR socket
• Receiver plugs into the mixing console's XLR input

Dimensions and Weight

• Dimensions (transmitter and receiver): 30 x 27.6 x 88.5 mm
• Total weight: 120 g (transmitter 60 g, receiver 60 g)

Box Contents

• Manual
• Dual USB-C / USB-A charging cable (charging cable included)
